Zhongmei · Belt Conveyor Systems
Built from the Route. Specified as a System.
TD75, DTII(A), DTL, telescopic, and large-inclination conveyors with matched drives, belts, idlers, pulleys, frames, controls, documentation, inspection, and export delivery.
Send a route drawing or current component measurements to begin.
Systems and Components
Select the Conveyor Around the Work

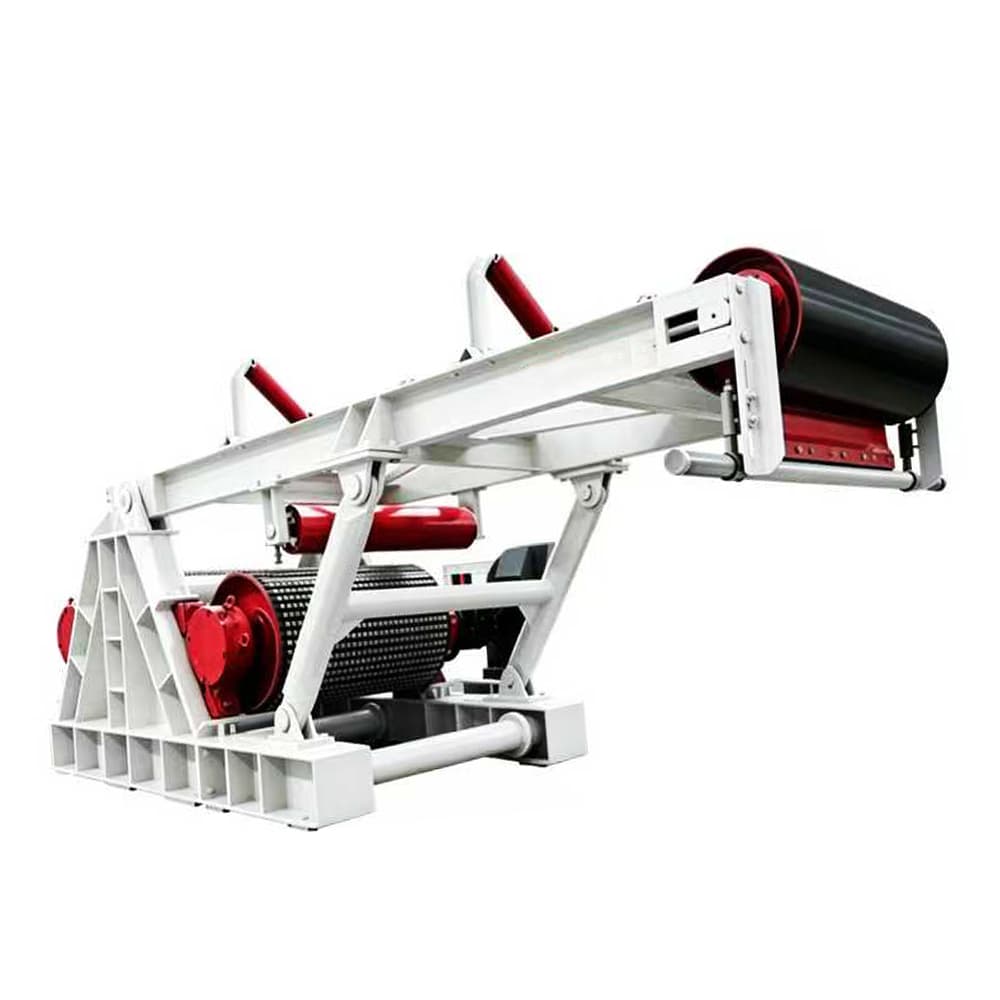

TD75-style fixed belt conveyor head and drive section supplied for project selection
/images/td75-belt-conveyor.jpg
TD75 Belt Conveyor
A standardized fixed belt conveyor family for bulk material transport in mines, plants, terminals, and industrial yards.
- 500-1200 mm supplied reference widths
- Horizontal or inclined routing
- Modular drive and idler selection

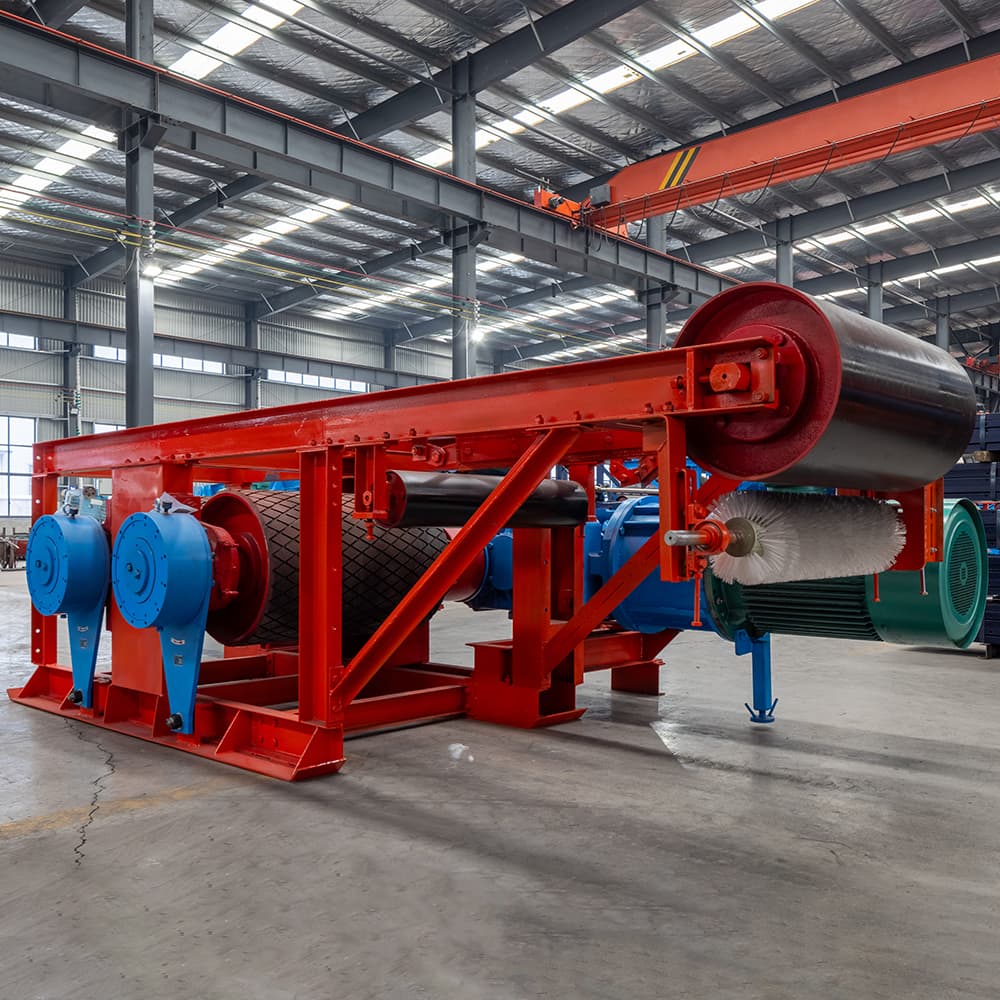

Heavy-duty belt conveyor head section and drive arrangement in a workshop
/images/dtii-belt-conveyor.jpg
DTII(A) Belt Conveyor
A fixed conveyor platform for higher-duty mine, port, power, metallurgy, and plant material-handling projects.
- Fixed long-distance duty
- Drive and take-up engineering
- Transfer-point integration

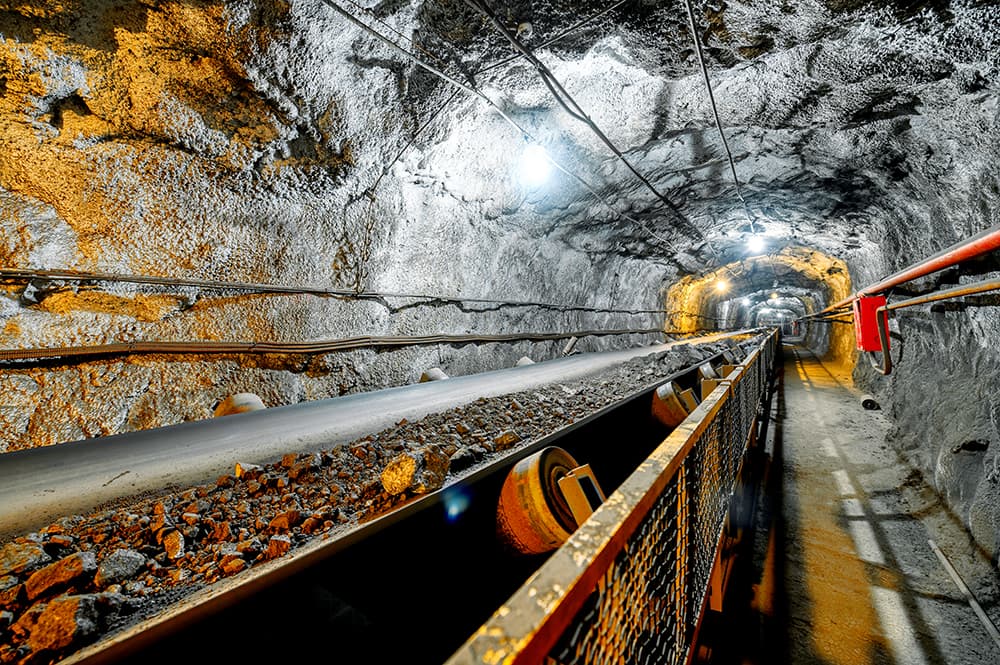

Underground belt conveyor carrying broken mineral material through a mine roadway
/images/dtl-underground-belt-conveyor.jpg
DTL Upward Belt Conveyor
An upward fixed conveyor family for underground and mine-incline transport, selected around lift, gradient, braking, backstop, and protection.
- Upward mine haulage
- Gradient and lift calculation
- Brake and backstop review

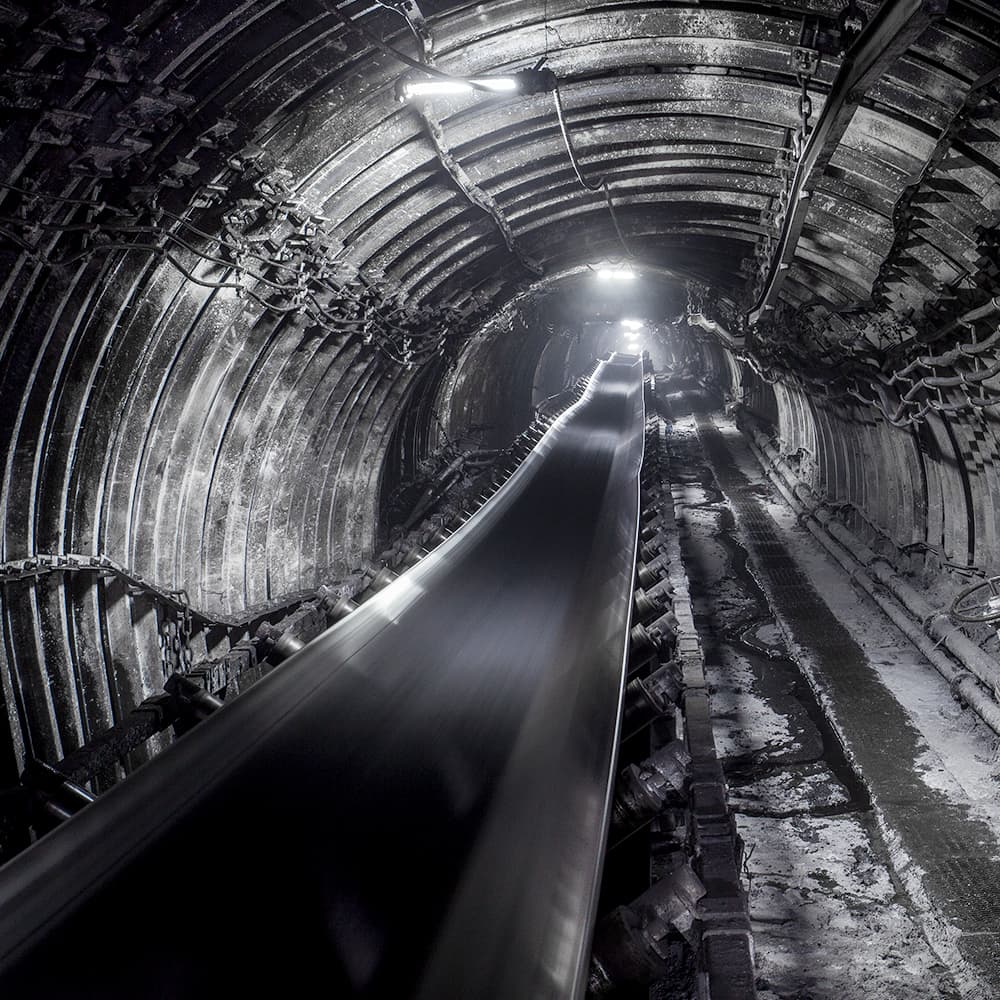

Belt conveyor installed along an underground tunnel for continuous material transport
/images/telescopic-belt-conveyor.jpg
Telescopic Belt Conveyor
A length-adjustable conveyor family for advancing mine and tunneling operations where the working face moves.
- Length adjustment by operating plan
- Advancing face integration
- Storage and take-up coordination

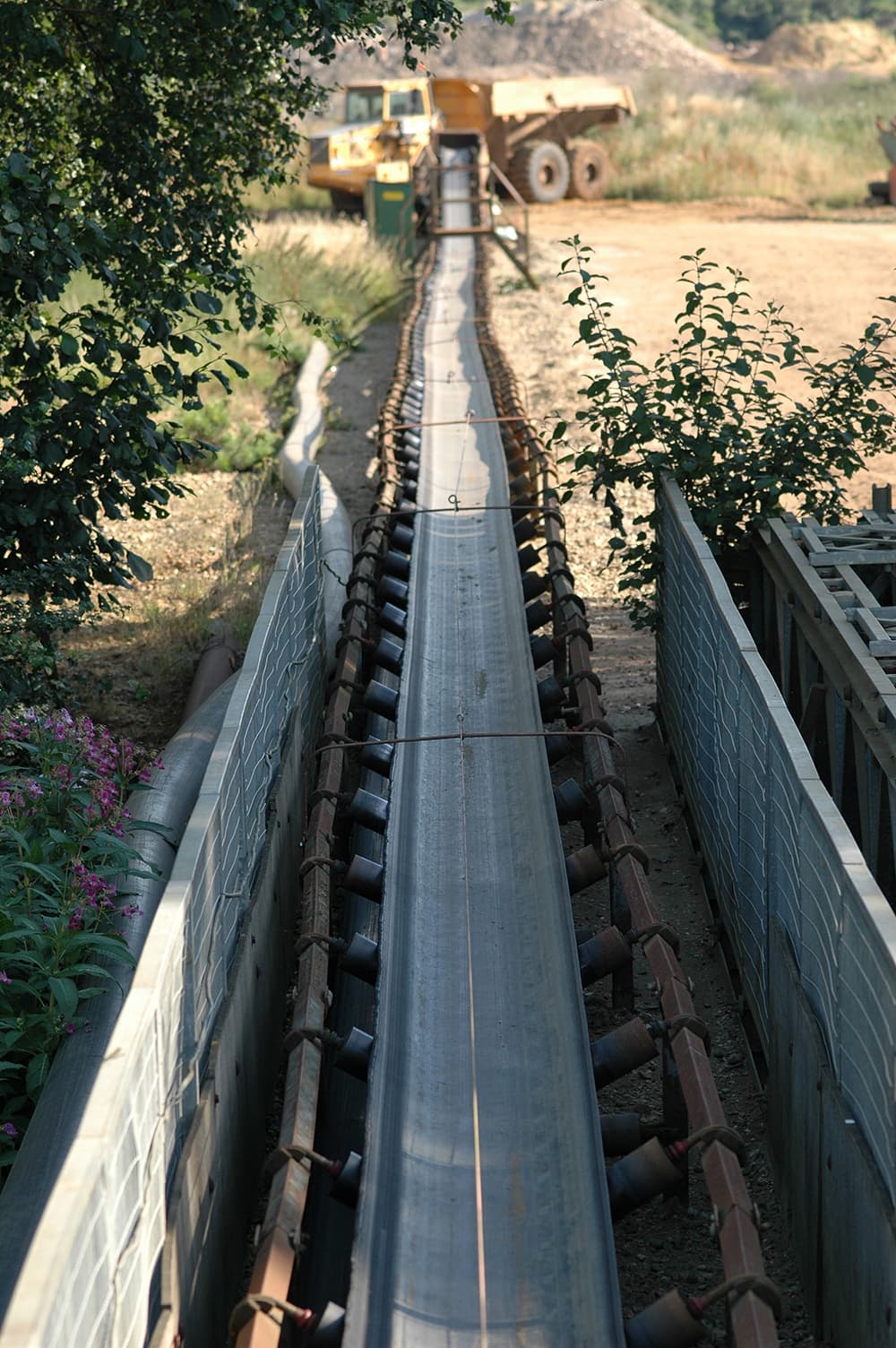

Inclined belt conveyor moving bulk material from a lower loading point
/images/large-inclination-belt-conveyor.jpg
DTC Large-Inclination Belt Conveyor
A steep-route conveyor family for projects where elevation and space make an ordinary shallow incline impractical.
- Large-inclination route planning
- Material-retention review
- Drive, brake, and backstop selection

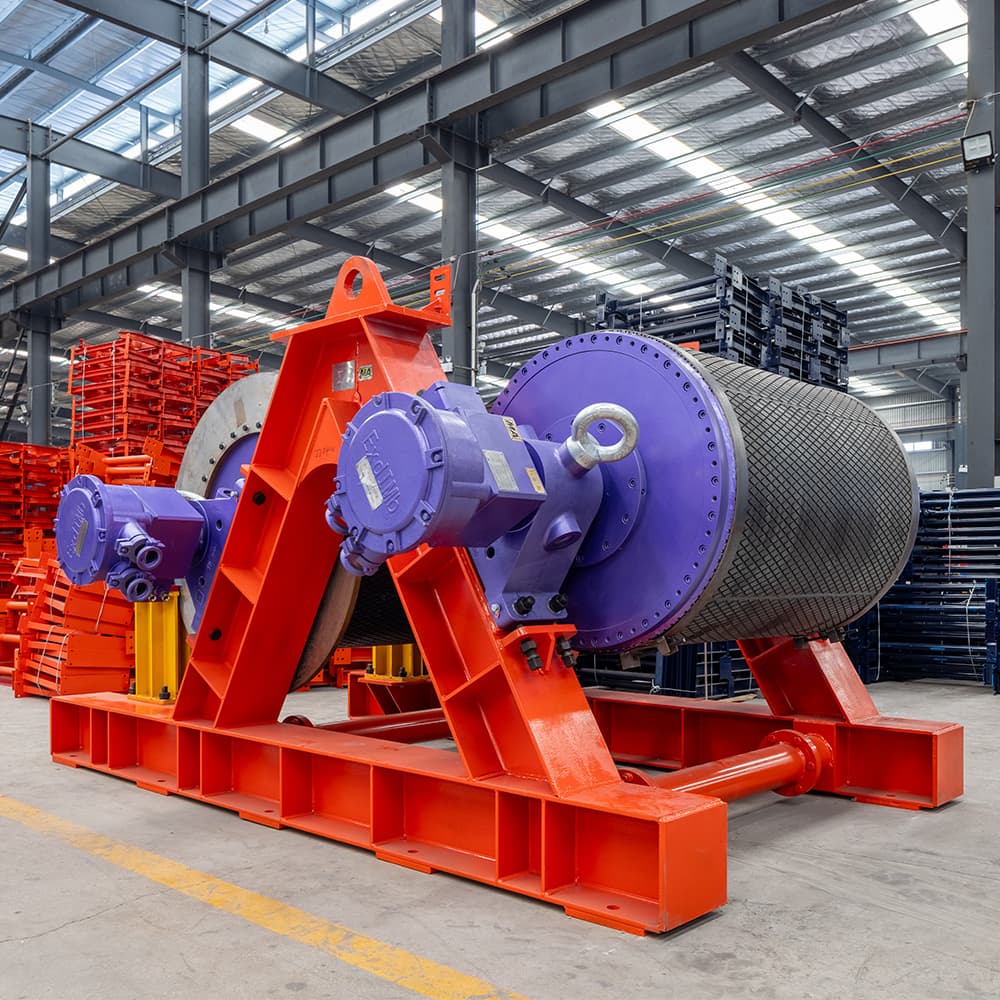

Permanent magnet synchronous electric drum assembly prepared in a workshop
/images/permanent-magnet-electric-drum.jpg
Permanent Magnet Synchronous Electric Drum
An integrated direct-drive drum option that combines the motor and drive pulley for selected belt conveyor duties.
- Integrated direct-drive layout
- 4.8-21.4 kN·m supplied torque rows
- 500-1000 mm supplied pulley diameters
Conveyor Belts
Replacement and project belts selected by strength, cover, width, thickness, material, environment, splice, and service duty.
Conveyor Idlers and Rollers
Carrying, return, impact, training, spiral, and transition idlers matched to belt width, frame, shaft, bearing, seal, duty, and environment.
Pulleys, H Frames and Conveyor Accessories
Drive and bend pulleys, H frames, cleaners, skirts, chutes, clamps, switches, fasteners, and replacement hardware for complete conveyor lines.
Engineering-Led Inquiry
Four Decisions That Control the Quote
A useful conveyor quotation connects the route, material, complete equipment boundary, and released evidence.
Route profile before model
Distance, vertical lift, incline, transitions, and working-face movement separate the major conveyor families.
Material data before belt speed
Density, lump size, moisture, temperature, and abrasiveness influence width, speed, belt, loading, and cleaning.
Complete scope before price comparison
Drive, take-up, belt, idlers, pulleys, chutes, guards, switches, structure, spares, and documents need one boundary.
Released data before shipment
Model identity, drawings, configuration, quantity, inspection records, packing, and loading evidence should agree.
Project Flow
From Route Data to Loaded Shipment
Map the Route
Send the length, lift, gradients, loading points, discharge point, supports, clearances, and transfer interfaces.
Define the Material
State density, lump size, grading, moisture, temperature, abrasiveness, capacity, surge, and duty hours.
Match the System
We coordinate the conveyor family, belt, drive, take-up, idlers, pulleys, structure, cleaning, protection, and controls.
Inspect and Export
Released drawings, inspection evidence, spare parts, packing, shipment, and document scope are tracked together.

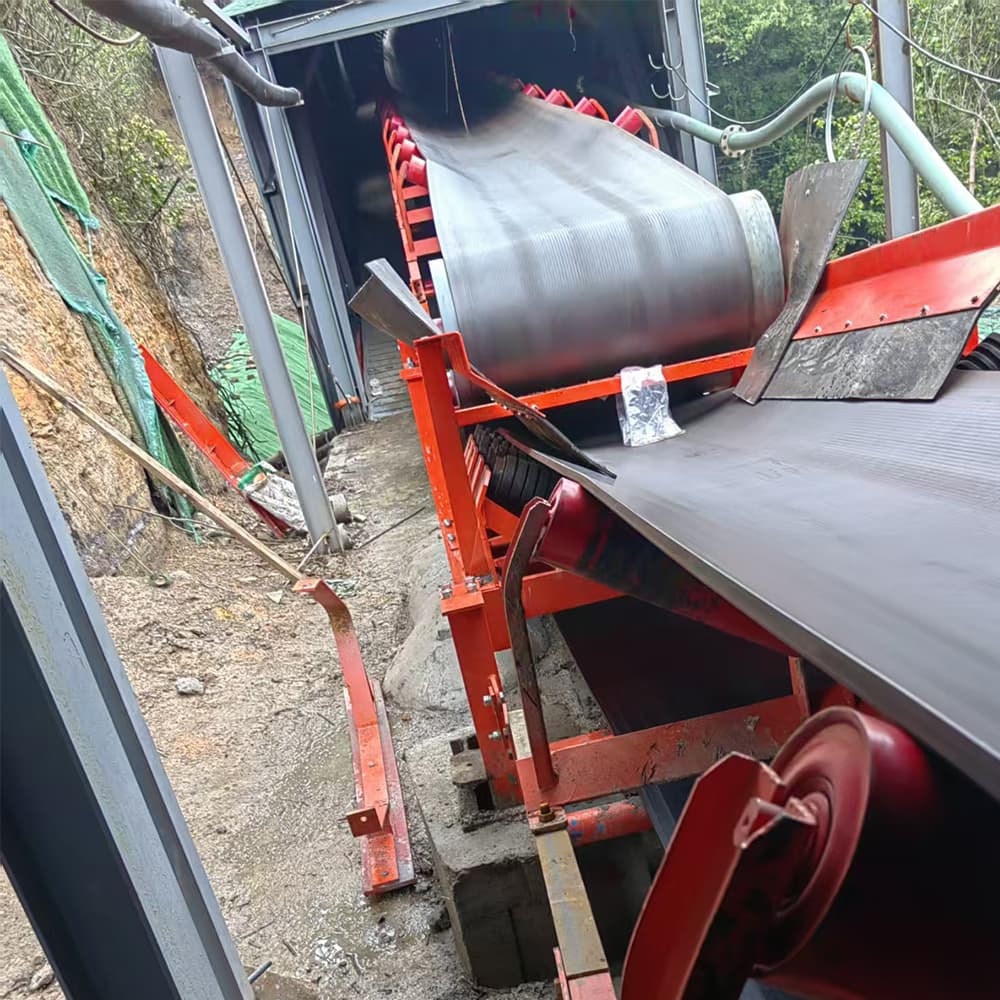

Conveyor idlers and system components prepared for order matching
/images/conveyor-idlers.jpg
Replacement and Expansion
Measured Components for Existing Lines
Idlers, pulleys, belts, H frames, cleaners, switches, and fasteners can be matched from drawings, nameplates, photos, measured samples, and operating duty.
Open measurement guideSend Us Your Route, Material, and Conveyor Scope
Tell us the route, material, capacity, system or component, quantity, destination, and document requirements. We reply within 24 hours with the next technical and commercial steps.
